Max. RPM: 10000
Max. RCF: 18300 x g
Max. Capacity: 4000ml
Temp. Control: -20oC-40oC
Product Catagories
Products > Floor Standing Centrifuges
> General Purpose Centrifuges

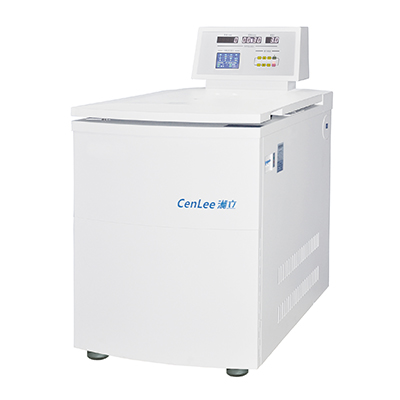

General Purpose Large Capacity Centrifuge
Model: CFH10R
|
Features
- Controlled by microcomputer with user-friendly panel and LED and LCD dual display. run control by speed or RCF.
- Drived by the high frequency maintenance – free motor with superspeed draft for stable running at high speed.
- Unique damping system and CFC-free compressor combine to ensure small vibration and low noise.
- Steel body and stainless steel centrifugal chamber for easy cleaning and durability.
- Designed with various protection devices for maximum operational safety, such as over-temperature detection, over-speed detection,lid lock system, imbalance protection and life calculation of unit and rotors, etc.
- Pre-cooling cools the chamber quickly. 10 pre-set acceleration/braking rates, or its time direct input ensures the best seperation even for the most delicate samples.
- Memory function can store up to 40 runs for your repetitive separation.
- Hold on function for short and quick centrifugation.
- Multifuntional centrifuge both in high speed and in low speeds with large capacity, widely used in the field of research and production and so on.
Specifications
| Floorstanding General Purpose Refrigerated Centrifuge, without rotor | |
| Model | CFH10R |
| Max.Speed (r/min) | 10000 |
| Max. RCF (x g) | 18300 |
| Max. Capacity (ml) | 6000 |
| Control | Microprocessor |
| Drive | AC Frequency Conversion Motor with large torque |
| Accel/Decel Rates | 10/10 |
| Programmability | 40 programs |
| Refrigeration | Environmental CFC-free Refrigeration System with R404a refrigerant |
| Speed Range (r/min) | 100-10000 |
| Speed Control Accuracy (r/min) | ±20 |
| Temp. Set Range (°C) | -20 to +40 |
| Temp. Control Accuracy(°C) | ±1 |
| Timer Range(hr:min:sec) | 0-99:59:59 |
| Noise (dB) | ≤ 65 |
| Power Supply V (Hz) | 220/110 (50/60), 35A, 3 phase |
| Dim. (W x D x H) mm | 820 x 710 x 1150 |
| Weight (kg) | 268 |
Rotors
| Rotor Type | Rotor No. |
Max. Capacity (place x ml) |
Max. Speed (rpm) |
Max. RCF (x g) |
Tube Size (Range, ml) |
Adapters for smaller tubes |
| Fixed Angle Rotor | 1 | 6 x 300 | 10000 | 18300 | 0.2-300 | Available |
| Fixed Angle Rotor | 2 | 6 x 500 | 8000 | 11680 | 0.2-500 | Available |
| Fixed Angle Rotor | 3 | 6 x 1000 | 7200 | 12166 | 0.2-1000 | Available |
| Swing-out Rotor with round buckets | 4 | 6 x 1000 | 4200 | 5100 | 5-1000 | Available |
| Swing-out Rotor | 5 | 4 x 1000 | 4200 | 4430 | 5-1000 | Available |
